Pre-Lecture Activities
Week 10
Watch before class this week
- Ultrasonic Distance Sensor
- OLED Graphics
Bring to class all this week
- Photon 2, breadboard, resistors, push buttons, LEDs, RGB LEDS, wires potentiometer
- Ultrasonic distance sensor
- MicroOLED
- You can see what parts look like visually by checking out the kit page
Build before class all week

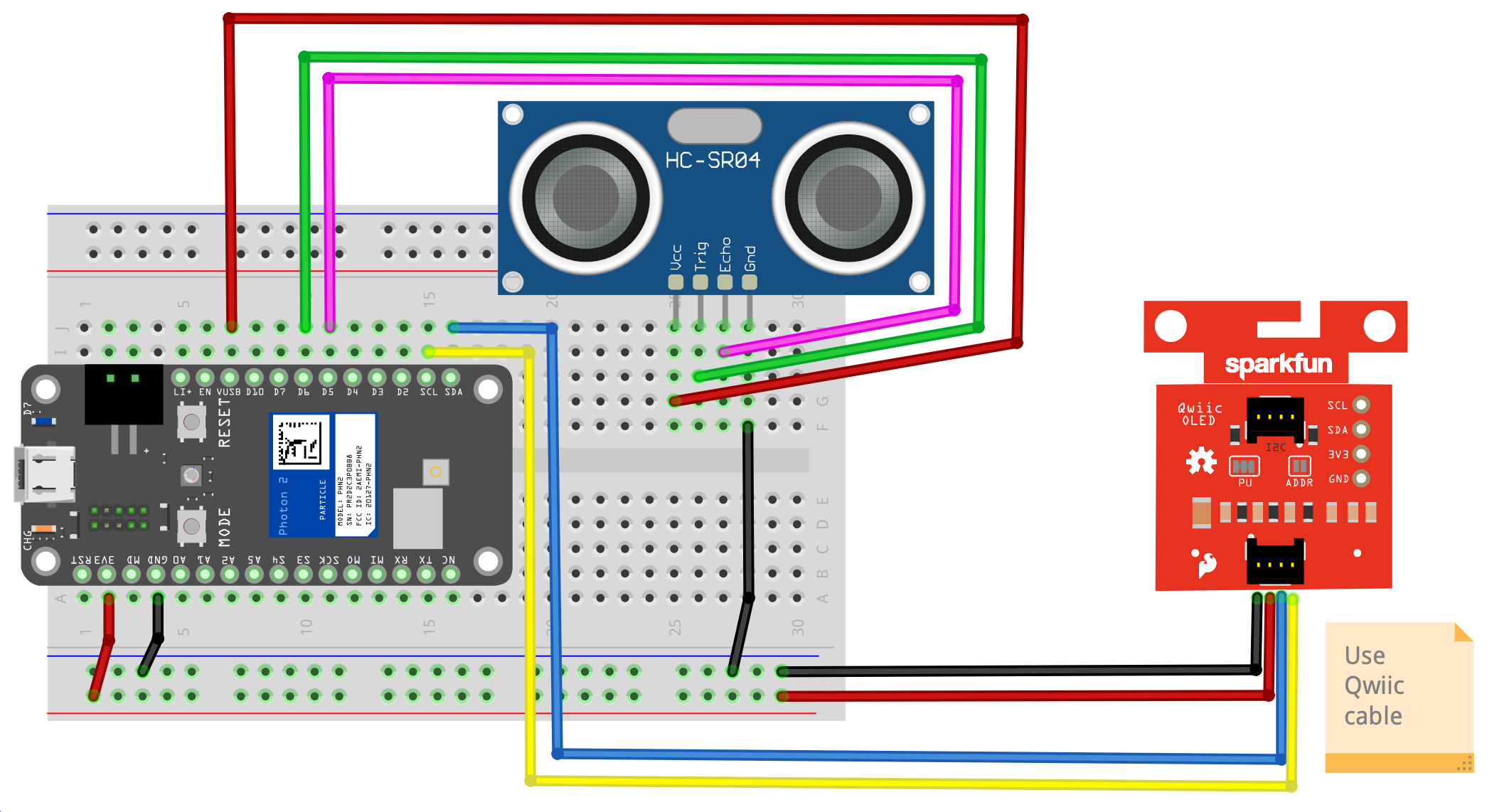

Sensor Wiring
| Sensor | Photon 2 |
|---|---|
| GND | GND |
| VCC | VUSB |
| TRIG | D6 |
| ECHO | D5 |
| OLED | Photon 2 |
|---|---|
| GND | GND |
| 3V3 | 3V3 |
| SDA (Blue) | SDA |
| SCL (Yellow) | SCL |
