Pre-Lecture Activities

Week 8

Watch before class this week

• switch and enum in C++ (already covered in class last week)

• State Machines

Bring to class all this week

• Photon 2, breadboard, resistors, push buttons, LEDs, RGB LEDS, wires potentiometer
• Magnetic switch
• MicroOLED
• You can see what parts look like visually by checking out the kit page

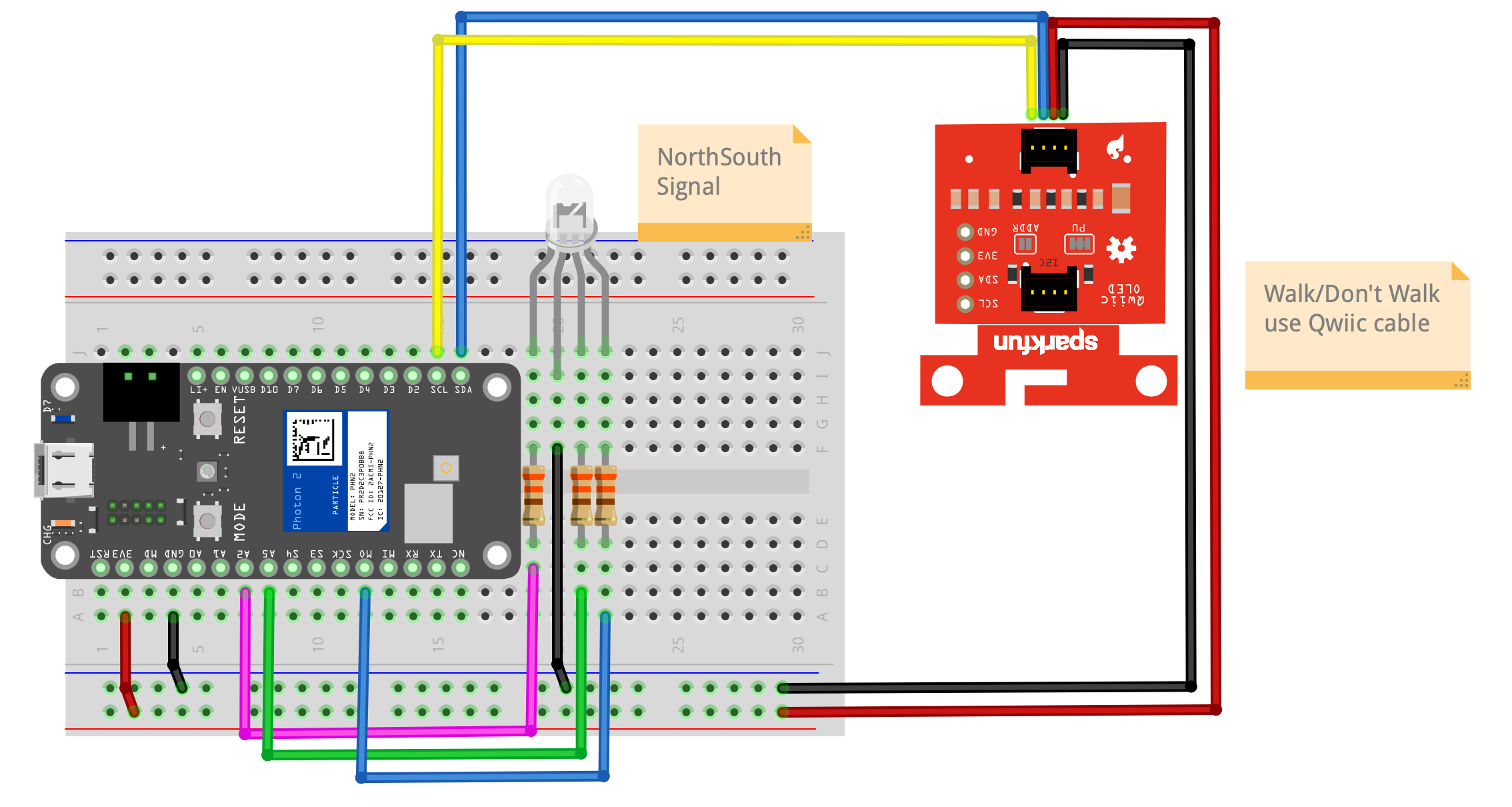

Build before class Mon / Tues

RGB LED	Photon 2 Pins
NorthSouth RGB LED - Red	A2
NorthSouth RGB LED - Green	A5
NorthSouth RGB LED - Blue	D15 (MO)

MicroOLED (Qwiic cable)	Photon 2 Pins
GND	GND
3V3	3V3
SDA (Blue)	SDA
SCL (Yellow)	SCL

Build before class Wed / Thurs

LED	Photon 2 Pins
Magnetic Switch	D5
RGB Red LED	A2
RGB Green LED	A5
RGB Blue LED	D15 (MO)
Potentiometer	A1
