RGB and Gesture Sensor

This content is incomplete but provides some code examples to get started using RFID

Class sensor may be a different color (purple)

RGB and Gesture Sensor

Uses APDS-9960 sensor
Measures ambient light
Measure color
Supports proximity detection
Allows for gesture recogition

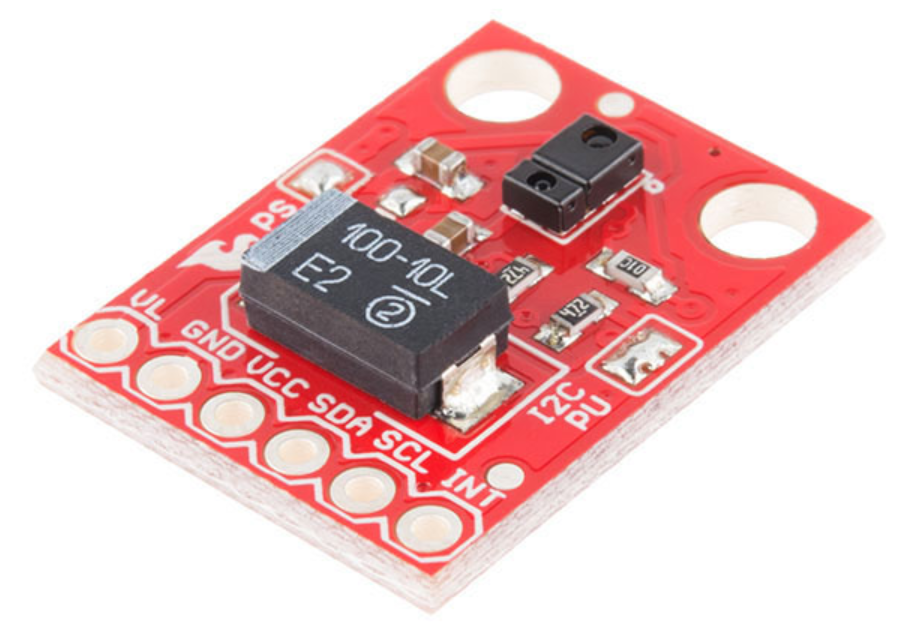

Sensor

Sensor communicates with Argon using I2C
Operates at 3.3v

Sensor Wiring

Sensor	Argon
VCC	3.3v
GND	GND
SDA	SDA
SCL	SCL
INT	-

RFID Library

SparkFun_APDS9960 is an Argon compatible library
Wire may also need to be included

Sample Code

The following code is adapted from the library example
Supports swiping gestures by moving hand over sensor for tracking or identification

Sample Code

#include <SparkFun_APDS9960.h>
#include <Wire.h>

SparkFun_APDS9960 apds = SparkFun_APDS9960();

void setup() {
  Serial.begin(9600);
  // Initialize APDS-9960 (configure I2C and initial values)
  if (apds.init()) {
    Serial.println(F("APDS-9960 initialization complete"));
  } else {
    Serial.println(F("Something went wrong during APDS-9960 init!"));
  }

  // Start running the APDS-9960 gesture sensor engine
  if (apds.enableGestureSensor(true)) {
    Serial.println(F("Gesture sensor is now running"));
  } else {
    Serial.println(F("Something went wrong during gesture sensor init!"));
  }
}

void loop() {
	if (apds.isGestureAvailable()) {
        handleGesture();
	}
    delay(500);
}

void handleGesture() {
  if (apds.isGestureAvailable()) {
    switch (apds.readGesture()) {
      case DIR_UP:
        Serial.println("UP");
        break;
      case DIR_DOWN:
        Serial.println("DOWN");
        break;
      case DIR_LEFT:
        Serial.println("LEFT");
        break;
      case DIR_RIGHT:
        Serial.println("RIGHT");
        break;
      case DIR_NEAR:
        Serial.println("NEAR");
        break;
      case DIR_FAR:
        Serial.println("FAR");
        break;
      default:
        Serial.println("NONE");
    }
  }
}
