Retrieving Data from APIs

Retrieving Data from APIs

Overview

• APIs provide useful data we can use in our device (e.g. weather and location data)
• Each API will be configured slightly differently but the process to connect is generally similar

##

##

##

##

##

Steps to Connect Photon 2 and API

1. Determine how to use the API
2. Create an integration -> webhook on Particle console
3. Use Particle.publish to trigger webhook
4. Use Particle.subscribe to “listen” for response from webhook
5. Optional: Mustache template that tells the Particle Cloud to which relevant data from the response should be to the Photon 2 (and the rest of the data will be ignored)
6. Create function handler that is used by Particle.subscribe to process JSON

Step 0: How to use the API

• Each API is different, but they will usually have documentation that describes how to connect
• Typically, this will include
  • Endpoint (URL you communicate with)
  • Parameters to include in your request (e.g. name of city you want weather data for)
  • How to obtain an API key (if necessary)

Step 0: How to Use the API

Example: WeatherStack

Step 1: Create Webhook In Particle Console

Particle integration settings

Part 2: Publish Event to Trigger Webhook

Photon 2 firmware

void loop() {
  String data = "90089";	//USC zip code

   // Trigger the integration
  Particle.publish("JSONWeatherStack", data, PRIVATE);

   // Wait 60 seconds
  delay(60000);
}

Part 3: Subscribe to JSON response from Weather Stack

Photon 2 firmware

void setup() {
  // Subscribe to the integration response event
  Particle.subscribe("hook-response/JSONWeatherStack",
                      jsonSubscriptionHandler, MY_DEVICES);
}

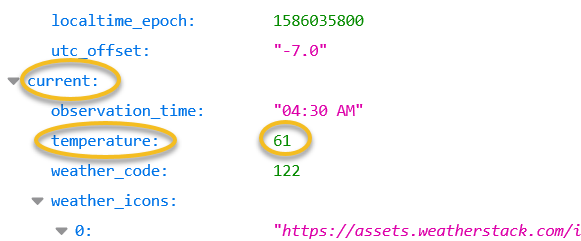

Example: Entire Weather Stack JSON Response

Weather Stack JSON Response (partial)

{
  "current": {
    "observation_time": "04:30 AM",
    "temperature": 61,
    "weather_code": 122,
  }
}

Part 4: Creating the function handler to receive and parse the JSON

• The last step is to create Photon 2 code to handle / parse the JSON response
• While it is possible to manually parse JSON in C++, it is considered unsafe due to potential for security vulnerabilities
• Instead, use a library
• Instruction and examples for parsing JSON with ArduinoJson

Resources

• Mustache Tester
• Mustache Variable Reference
• JSON Validator and formatter
• Weatherstack documentation
